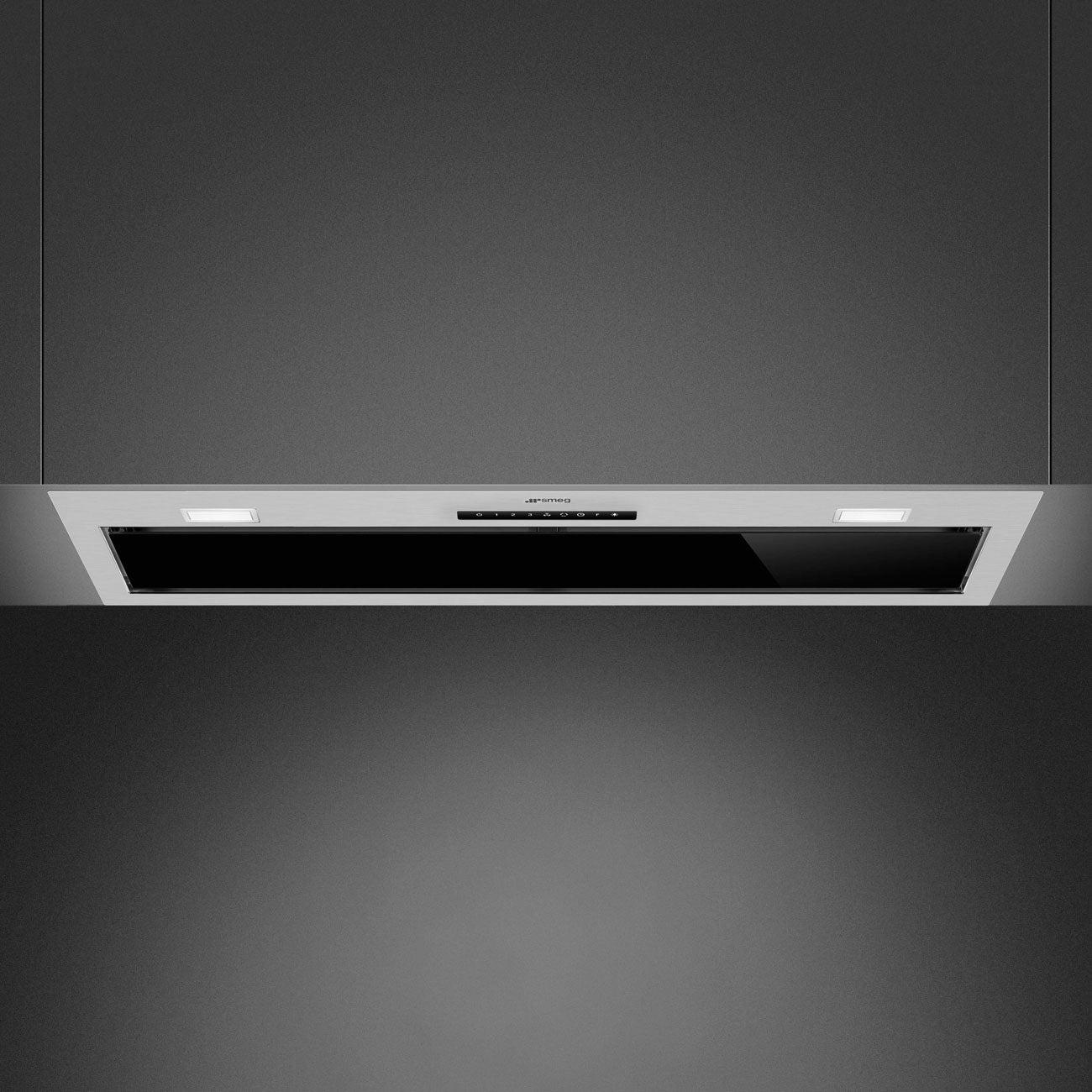

Smeg 90cm Integrated Undermount Rangehood Stainless Steel KSGAU9P4VN
1
of
2
Loading...
SKU:
KSGAU9P4VN-A
$2,590.00
Unit price
/
Unavailable
Tax included
Smeg 90cm Integrated Undermount Rangehood Stainless Steel KSGAU9P4VN is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
The KSGAU9P4VN is a 90cm Integrated Undermount Rangehood Stainless Steel from Smeg.
-

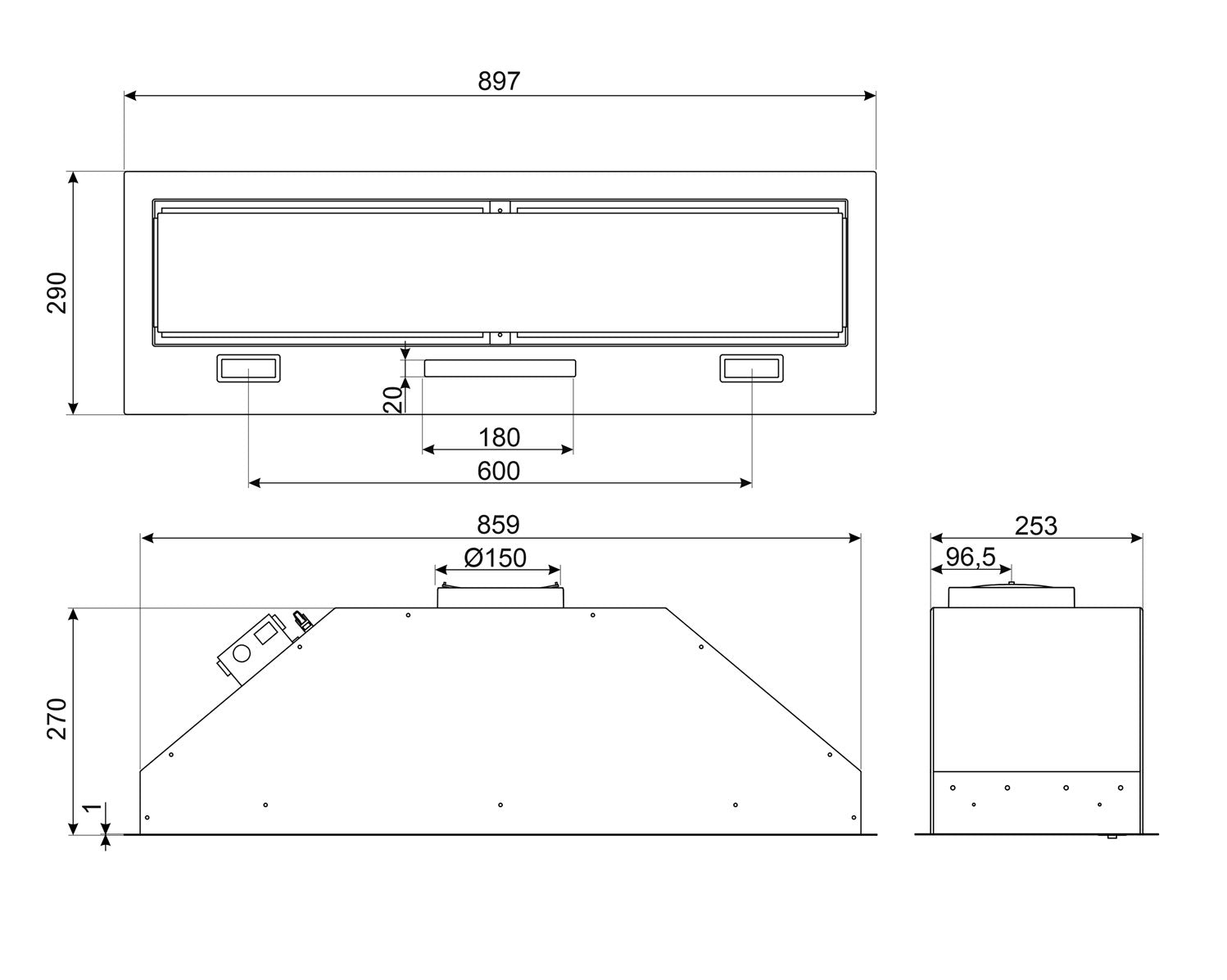

Height (mm)335 mm
-
Width (mm)897 mm
-
Depth (mm)300 mm
-
MpnKSGAU9P4VN
-
Model numberKSGAU9P4VN
-
ColourStainless Steel
-
Lights2 x 2.3W LED
-
LightingLED
-
Size range90cm
-
Features✓ Electronic control ✓ No. of speeds: 3 ✓ Intensive speed: Yes ✓ 24h air filter function: Yes ✓ Automatic switch-off ✓ Touch control back-lighted White ✓ Anti-grease filters: Aluminium
-
Manufacturer warranty5 Years
-
InstallationUndermount
-
More SpecsType
- Product family: Hood
- Hood Type: Integrated hood
- Hood width: 90 cm
- Extraction: Extraction
- Electronic control: Yes
- Perimeter extraction: Yes
- Colour: Stainless Steel and Glass
- Finishing: Satin
- Aesthetic: Universale
- Design: Fully integrated
- Material: Stainless steel
- Type of steel: Brushed
- No. of speeds: 3
- Intensive speed: Yes
- 24h air filter function: Yes
- Time-setting options: Automatic switch-off
- Auto-vent 2.0: Sì
- Control setting: Touch control back-lighted White
- Led color: White
- Dimmer mode: Yes
- Light color temperature range: 2700° - 4000° °K
- Free outlet maximum capacity: 730 m³/h
- Motor power: 230 W
- No. of filters: 2
- Anti-grease filters: Aluminium
- Filter replacement indicator: Yes
- Minimum distance from GAS hob: 650 mm
- Minimum distance from ELECTRIC hob: 650 mm
- Vent outlet: 150 mm
- Non return valve: Yes
- Energy efficicency class ( EEC): A
- Fluid Dynamic Efficiency class (FDEC): A
- Grease Filtering Efficiency Class (GFEC): C
- Lighting Efficiency Class (LEC): A
- Annual Efficiency Consumption (AEChood): 53 kWh/a
- Fluid Dynamic Efficiency (FDE): 30.1
- Lighting Efficiency (LE): 31.1 lux/W
- Grease Filtering Efficiency (GFE): 77.9 %
- Air flow at minumum speed (Qmin): 242 m³/h
- Air flow at maximum speed (Qmax): 481 m³/h
- Air flow at boost speed (Qboost): 697 m³/h
- Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 45 dB(A)
- Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 60 dB(A)
- Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 67 dB(A)
- Power Consumption in Off mode (Po): 0.49 W
- Time increase factor (F): 0.9
- Energy Efficiency Index: 52.6
- Measured air flow rate at best efficiency point (Qbep): 369 m³/h
- Measured air pressure at best efficiency point (Pbep): 446 Pa
- Measured electric power input at best efficiency point (Wbep): 152 W
- Nominal Power consumption of the light system (WL): 5 W
- Average illumination of the light on the cooking surface (Emiddle): 143 lux
- Sound power level at highest setting (Lwa): 60 dB(A)
- Electrical connection rating: 235 W
- Voltage: 220-240 V
- Frequency (Hz): 50-60 Hz
- Power supply cable length: 1500 mm
- Extraction rate IEC 61591: 243 m³/h
- Noise level IEC 60704-2-13: 45 dB(A)
- Power: 131 W
- Extraction rate IEC 61591: 362 m³/h
- Noise level IEC 60704-2-13: 53 dB(A)
- Power: 164 W
- Extraction rate IEC 61591: 481 m³/h
- Noise level IEC 60704-2-13: 59 dB(A)
- Power: 186 W
- Extraction rate (IEC 61591): 697 m³/h
- Noise level IEC 60704-2-13: 67 dB(A)
- Power: 224 W
